Volcano Monitoring Low-Cost Camera Could Help Forecast Volcano Eruptions

Related Vendors

DÜPERTHAL Sicherheitstechnik GmbH & Co. KG

Xylem Analytics Germany Sales GmbH & Co. KG

Bimos - eine Marke der Interstuhl Büromöbel GmbH & Co. KG

Scientists make long-term volcano monitoring feasible by developing a camera that is cheaper and more efficient in the field. This new SO₂ camera is significantly cheaper and uses less power.

Gas emissions are the manifestation of activity occurring beneath the surface of a volcano. Measuring them lets researchers see what can’t be seen from the surface. This knowledge is vital for hazard monitoring and the prediction of future eruptions. Since the mid-2000s, ultraviolet SO₂ cameras have become important tools to measure emissions. The measurement campaigns, however, must be accompanied by a user, making SO₂ cameras unsuitable for acquiring long-term datasets. Building and operating this type of camera can cost upwards of 20,000 dollars, resulting in very few cameras being installed permanently.

To get better long-term monitoring data, an international team of researchers has developed an SO₂ camera to continually measure emission rates from volcanoes. They have now published an article about the camera design and two initial datasets in Frontiers in Earth Science.

“Our instrument uses a sensor not dissimilar to smartphone camera sensors. It is modified to make it sensitive to ultraviolet light, therefore enabling SO₂ detection,” said Dr Thomas Wilkes, a researcher at the University of Sheffield and lead author of the study.

Less Costly and Power Intensive

Compared to previous models, the researchers’ SO₂ camera is significantly cheaper and uses less power. The new design comes with a price tag of around 5,000 dollars, reducing the cost of parts needed to build the camera down to approximately a fourth of previous models.

“Wherever possible we 3D print parts too, to keep costs as low as we can,” Wilkes explained. “We also introduce a user-friendly, freely available software for controlling the instrument and processing the acquired data in a robust manner.” The affordability and user-friendliness makes the camera accessible to more volcanologists who otherwise might not have access to datasets containing accurate gas emission rates.

Additionally, the power consumption of the system is low, with an average of 3.75 Watts. This is about half of what was needed to power systems presented previously. On sites where there is little solar power to be harnessed this will be especially beneficial, the researchers wrote. Their camera runs on fewer or smaller solar panels or batteries, reducing the overall cost further.

While there are other instruments to measure volcanic emissions, “the SO₂ camera can provide higher time- and spatial-resolution data which could facilitate new volcanological research when installed permanently,” said Wilkes.

Japan: Undersea Detector

Cosmic Ray Sensor Successfully Observes Tsunami Waves

Data from Chile and Hawaii

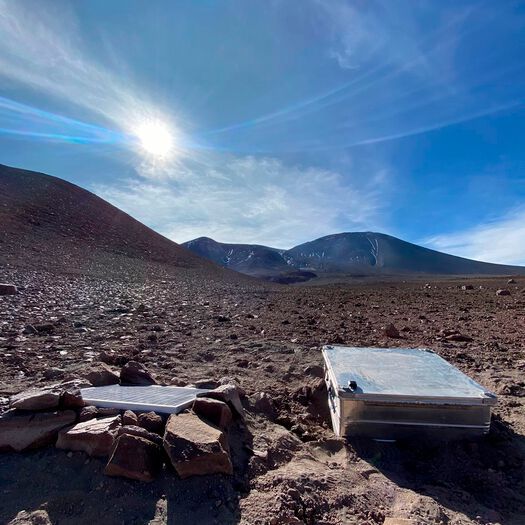

Wilkes and his team also presented two preliminary data sets from Lascar, a stratovolcano in Chile, and Kilauea, a shield volcano on Hawaii’s Big Island, where their camera is in continuous operation.

“Before now, only three volcanoes have had permanent SO₂ cameras installed on them,” Wilkes said. “Discrete field campaigns have been carried out, and whilst they can be invaluable for a range of research questions, it is important to be able to measure volcanic activity continuously, since it can vary substantially from minutes to decades to centuries and beyond.”

Despite being cost-efficient and easy to use, the researchers pointed to some limitations of SO₂ cameras: “They are dependent on meteorological conditions, and work best under clear blue skies when the volcanic gas plume moves in a 90-degree angle to the viewing direction of the camera,” said Wilkes.

References: A new permanent, low-cost, low-power SO2 camera for continuous measurement of volcanic emissions; Frontiers in Earth Science; DOI:10.3389/feart.2023.1088992
