Material Testing Weathering Tests for Polymers – Why Black Panel Thermometers (BPTs) are Redundant and Misleading

From Peter Trubiroha*, Dieter Kockott**, Jörg Boxhammer***

How do polymers behave with temperature changes that occur in their life cycle? This is a decisive factor for product development. For this reason, there are several standards for weathering tests. This article provides an overview of why some of these tests are unsuitable.

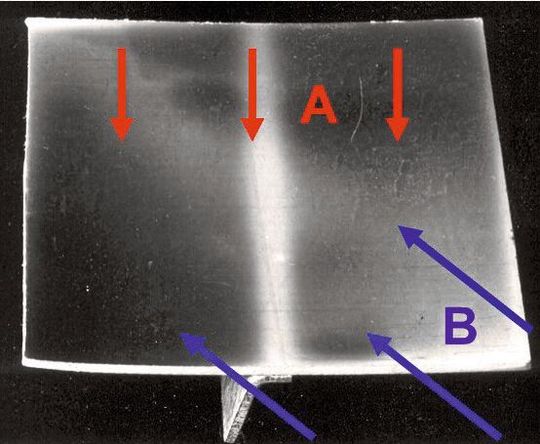

Uneven discolouration of light grey PVC when irradiated with a xenon lamp (A, red arrows). This is caused by small differences in the surface temperature due to cooling air flowing in from the side (B, blue arrows)
Uneven discolouration of light grey PVC when irradiated with a xenon lamp (A, red arrows). This is caused by small differences in the surface temperature due to cooling air flowing in from the side (B, blue arrows)
(Source: Trubiroha, Kockott, Boxhammer)

Polymer degradation by solar radiation usually depends on specimen surface temperature. Therefore, this temperature needs to be measured in irradiation and weathering tests

Up to the 1980s in international and national standard weathering test procedures a variety of differently designed temperature sensors, so-called black panel thermometers BPT, were allowed to control the thermal conditions in the test devices. Fact was, that the surface temperature of a test specimen could vary by up to 20 K at the same set temperature in different weathering devices.

Gallery

To solve this problem a precisely defined „black standard thermometer BST” was proposed in 1993 and afterwards recommended in many ISO weathering standards. At present, simple BPTs for temperature control appear again more frequently in the standards, which means that the actual surface temperature of the irradiated polymeric materials is significantly higher compared to the temperature indicated by BPT and e.g. the rate of photooxidation may increase by up to 100%.

The experimental results which led to the introduction of BST in 1993 have been confirmed by many new studies.

Introduction

It is needless to say that the specimen temperature is a very important parameter concerning the influence on physical properties of polymers including its photo degradation behaviour. In photo degradation processes the surface temperature of the polymer or coating specimen is the most influencing factor.

Precise measurement of the surface temperature of irradiated polymers is an unsolved problem.

In the following we refer to the important series of standard weathering tests ISO 4892 Plastics — Methods of exposure to laboratory light sources, part 1 to 3, editions from 1980 till 2016 (last edition), which are the basis for numerous other international and national weathering standards for plastics, coatings and other specific polymeric materials.

50 year ago different black panel thermometers (BPTs) were state of the art to determine – as indicated in the standards – the maximum surface temperature of irradiated specimen surfaces in artificial weathering devices with xenon or carbon arc lamps. But there was a variety of technical design which fell far short to fulfil this task. At the same black panel temperature of 45 °C in different xenon arc weathering devices the actual maximum surface temperature was significantly higher. The temperature difference varied between +7 K and +25 K and caused large differences in ageing results after a same level of radiant exposure. About 40 years ago first tests started with a new design of a black panel thermometer, called „black standard thermometer (BST)“, which, as required by the international weathering standards, should show an actual maximum surface temperature and which allows repeatable and uniform thermal conditions in different weathering devices. The basic principles are described in section "Normung” of [1].

In 1993 the authors [2], representing the manufacturers of Xenotest and Weatherometer weathering devices and the German Federal Institute for Materials Research and Testing, published a summary on this item. It explained in detail the theoretical and experimental basis for measuring the temperature of irradiated polymer surfaces and the limits of the experimental determination. The authors presented a BST with the aim to determine the maximum surface temperature of a black polymer of 5 mm thickness, see figure 1. The advantage of this BST was obvious. Consequently, since 2001, the editions of ISO 4892-2, have included several exposure cycles with a temperature control using the black standard thermometer BST. A warning was noted in Clause 6.2.1 Black-standard / black-panel temperature:

„For reference purposes, Table 3 specifies black standard temperatures. Black panel thermometers may be used in place of black standard thermometers. However, different set-point temperatures must be used to compensate for the differences in thermal conductivity between the two thermometer types (see ISO 4892-1, subclause 5.2.3). If a black panel thermometer is used, then the type of thermometer, the way in which it is mounted on the specimen holder and the selected temperature of operation shall be stated in the test report“.

Requirements on BST / BPT in International Standards

A fundamental requirement according to ISO 4892-1: 2016, clause 5.2.1 is „the black panel shall be mounted within the specimen exposure area so that it is in the same plane and orientation and receives the same radiation and experiences the same cooling conditions as a flat test panel surface“.
