Japan: Mobile Diagnostics Smartphone Scanner Counts Biological Viruses

Editor: MA Alexander Stark

The current leading method to assess the presence of viruses and other biological markers of disease is effective but large and expensive. It is difficult for use in many situations. So researchers created and tested an alternative miniaturized system that makes use of low-cost components and a smartphone.

Related Vendor

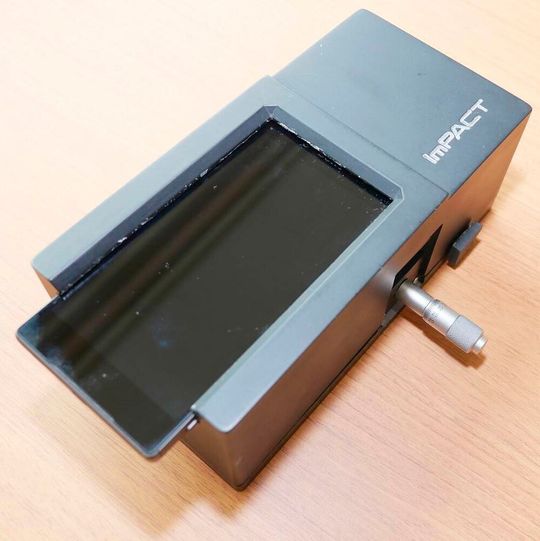

The device is about the size of a brick with a slot on top in which you place a smartphone.
The device is about the size of a brick with a slot on top in which you place a smartphone.
(Source: 2019 Rohan Mehra - Division for Strategic Public Relations)

Tokyo/Japan — A virus scanner for a smartphone might not sound too exciting at first, but this virus scanner doesn’t search for the latest malware; it scans biological samples for real viruses. It is a portable, low-cost, battery-powered device and is the brainchild of Yoshihiro Minagawa from the University of Tokyo. It was tested with viruses but could also detect other biological markers.

Current state-of-the-art tools for detecting and counting viruses and other biomarkers, such as fluorescence microscopes, are generally large, expensive, slow and difficult to use. Although highly accurate at counting viruses, these tools are just too cumbersome for many situations, especially when rapid diagnosis is required.

Given two equal samples containing influenza, the system detected about 60 % of the number of viruses as the fluorescence microscope. The scientists claim that it’s much faster at doing so and more than adequate to produce good estimates for accurate diagnoses. According to Minagawa, the device is about 100 times more sensitive than a commercial rapid influenza test kit, and it’s not just limited to that kind of virus.

The device is about the size of a brick with a slot on top in which you place a smartphone such that its camera looks through a small lens to the inside of the device. On the screen through a custom-made smartphone app you would see what may at first glance look like a starry night sky, except those stars would in fact be individual viruses.

Viruses are held in place on a clear surface in tiny cavities lit with an LED. The surface and fluid surrounding it were designed so that only when a cavity has a virus inside does incident light — the light that directly hits the surface — from the LED redirect up to the camera, manifesting in a bright pixel in an otherwise dark void. Each cavity is 48 femtoliters (quadrillionths of a liter) — it would take over 10 million of these to hold a single human tear.

This is now possible because smartphones and their embedded cameras have become sufficiently advanced and more affordable. Minagawa now hopes to bring this technology to those who need it the most. Other biomarkers such as nucleic acids — like DNA — are to be added to the options the device can detect.

References: Yoshihiro Minagawa, Hiroshi Ueno, Kazuhito V Tabata, and Hiroyuki Noji. Mobile imaging platform for digital influenza virus counting. Lab on a Chip.
