pH measurements are vital for maintaining water quality, significantly influenced by the pH sensor's performance. This article outlines a step-by-step guide for calibrating a pH sensor using three buffer solutions (pH 4.01, 7.00, and 9.21) to achieve reliable results. Regular calibration is crucial for ensuring consistent and accurate readings across various applications, thereby enhancing decision-making in research and environmental monitoring.

Accurate pH measurements are essential for maintaining water quality. The accuracy of these measurements largely hinges on the performance of the pH sensor and its effectiveness. One of the important ways to ensure that your pH sensor functions correctly is through calibration.

In this article, we will walk you through simple steps to calibrate your pH sensor, helping you achieve reliable results and maintain optimal performance.

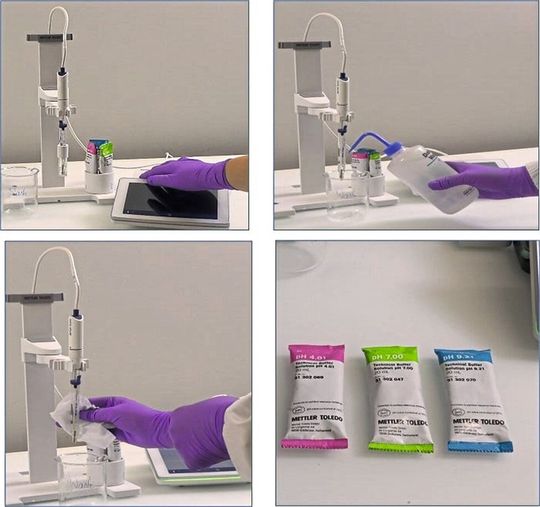

1. Calibration Preparation

Turn on the pH meter: Start by plugging in the power supply and turning on your pH meter. Ensure that the electrode is securely attached. If your sensor is equipped with Intelligent Sensor Management (ISM), it will automatically connect once powered on.

Rinse the electrode, dab it dry: Thoroughly rinse the electrode with distilled water to eliminate any residue from its storage solution. Gently dab it dry using a clean tissue paper.

Preparing Buffers Solutions: For accurate calibration, it is recommended to use a three-point calibration with different pH value buffer solutions (pH 4.01 acidic, 7.00 neutral, and 9.21 alkaline). The buffers should be available for calibration to bracket the expected pH, which is around 7.00 in this case. The first buffer, with a pH of 4.01, is considered acidic; the second buffer is neutral at a pH of 7.00; and the third buffer has a pH of 9.21, making it alkaline.

Temperature Considerations: Make sure that all buffer solutions are at the same temperature as the pH meter, as pH measurements can vary with temperature.

Using buffers: Pour each buffer into separate beakers or use single-use sachets for calibration. Avoid keeping buffer solutions in a beaker for more than two hours, and do not return used buffers to their original containers to prevent contamination.

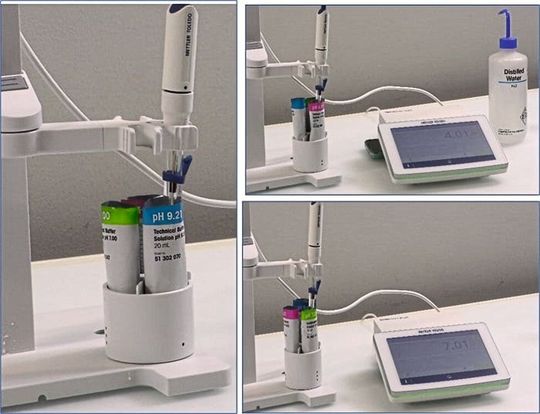

2. Calibration Process

First calibration point (4.01): Begin by dipping the electrode into the pH 4.01 buffer solution. Initiate the calibration process and wait for the reading to stabilize. Once stable, rinse the electrode with distilled water and gently dab it dry.

Second calibration point (7.00): Next, immerse the electrode in the pH 7.00 buffer solution. Allow the reading to stabilize, then take the second calibration point. Rinse the electrode again with distilled water and dab it dry.

Third calibration point (9.21): Finally, dip the electrode into the pH 9.21 buffer solution and start the calibration. Wait for the reading to stabilize.

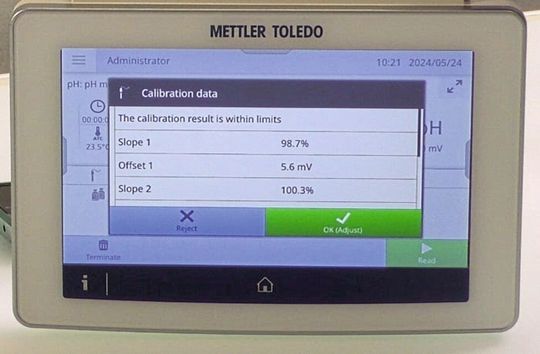

After completing the three calibration points, the meter will calculate the calibration curve data, including the slope and offset. A slope within the range of 90% to 105% and an offset of +/-15 mV indicates that the sensor is in excellent condition.

3. Measurement

Calibration data: The meter pH uses values from three calibration points to ensure accuracy. It automatically selects calibrated data corresponding to the segment in which the pH value of the sample falls.

Measure the sample: Dip the electrode into the water sample and start measurement. Allow the reading to stabilize.

Show measurement data: The pH measurement data will be saved automatically.

Calibrating a pH sensor is essential for obtaining accurate pH measurements. This process helps to ensure that your readings are reliable and consistent. To achieve this, follow the outlined steps carefully, as each one is vital for proper calibration.

Regular calibration is necessary, especially when working with different water samples. By adhering to these steps, you can enhance the accuracy and reliability of your pH measurements, which is crucial for various applications in research, industry, and environmental monitoring. Properly calibrated equipment leads to better decision-making and improved outcomes in your work.

Download the free calibration guide on how to perform pH calibration. Also, click here to learn more about the buffers and solution selection to match your specific application.
