Growing price pressure, fiercer competition, staff shortages — and now Covid-19: Laboratories are today facing a range of major challenges. Thankfully, robotics provides a reliable way to make laboratory analytics more efficient while easing the burden on specialist staff. The solution? Collaborative robots — or ‘cobots’.

With collaborative robots taking care of monotonous activities, technicians can devote their time to more important work.
With collaborative robots taking care of monotonous activities, technicians can devote their time to more important work.
(Source: UR)

The Covid-19 pandemic is confronting countries across the world with new kinds of social and economic challenges. Especially in clinical laboratories, analytics systems are running round the clock to cope with the high volume of test samples. Diagnosticum is a network of 13 medical laboratories across Germany whose more than 600 staff work night and day to supply over 1,000 doctors and any number of stationary medical facilities with test results covering every aspect of laboratory medicine and pathology.

In response to Covid-19, the lab network had to add PCR tests for SARS-COV2 to its list of diagnostic activities. Internal process and staff capacity alike had to be adjusted to ensure that the vital PCR tests could be completed quickly. Almost out of nothing, Diagnosticum thus saw the birth of a whole new department dimensioned to handle three shifts a day. The problem was that it was not possible to recruit new staff on such a short notice. Good lab technicians are a rare breed – especially when the work involves unsociable hours and inconvenient operating models.

Gallery
Gallery with 5 images

Robotic Colleagues Take Care of Emergency Service

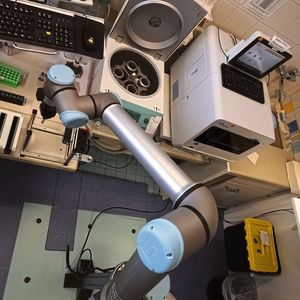

Ultimately, technical assistance provided a solution enabling the group to process the laboratory parameters needed for intensive care units and operating theaters as quickly as possible and on a 24/7 basis. A collaborative robot from Universal Robots – or a ‘cobot’ for short – now handles the unpopular night shift as an emergency service.

After successfully passing a risk assessment, the cobots work side by side with humans even in enclosed spaces. These lightweight collaborative robots are today deployed around the globe in all kinds of industries for tasks such as pick-and-place applications and surface processing. They normally handle work steps that must consistently be done with the same force and the same high level of precision however often it is repeated.

Medical and industrial laboratories too are increasingly taking advantage of their untiring accuracy, as are chemical analytics and medical technology applications. Cobots have long since disproved the misconception that automation is the exclusive preserve of large industrial corporations. On the contrary, compact lightweight robots can be incorporated seamlessly and effortlessly in the modern structures used even by small laboratories.

What Does a Cobot Actually Do?

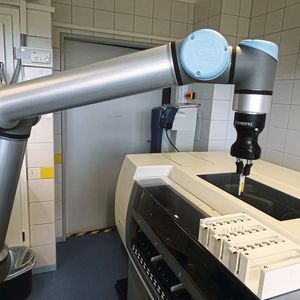

At Diagnosticum, the ‘electric employee’ spends its nights doing exactly what the lab technicians do during the day: testing blood samples. To do so, it fills and empties a centrifuge, scans test tubes, unplugs them, places them in the measuring device and then removes them again after measurement.

Lastly, the cobot places the test tubes in the holding devices used to load the measuring equipment. Once the samples have been analyzed, the results are forwarded automatically to the doctor or hospital responsible via the laboratory information system (LIS). Data is transmitted between the different IT systems every two to three minutes, guaranteeing a swift and smooth flow of information.

When fitted with various peripheral products such as grippers and sensors, cobots can be assigned to countless other tasks in laboratory settings. They are ideal for monotonous and repetitive activities, such as regularly filling measuring devices with microbiological bacteria or chemical firing samples. In this context, collaborative robots can provide efficient relief to their human colleagues: In most cases, laboratory staff involved in this kind of process have to swap the samples every couple of minutes, after measuring is complete. If a collaborative robot assumes this duty, that frees the technicians up to do more demanding tasks in the meantime, such as more complex measurements and/or documentation.

Robots are suitable for a versatile array of applications. They are the perfect assistants for test processes in the industry too – for example in endurance testing, which is widespread in every branch of manufacturing. Endurance testing reveals how long a material remains undamaged and functional during intensive usage. It normally requires a specific movement to be repeated tens of thousands of times – a strenuous and unhealthy assignment for humans, but not for robots. Integrated software allows the latter to imitate user-typical forces, record increasing and decreasing forces during movement and register any defects on the test object.
