Highly Permeable Polymer Film Could Enhance Extraction of Water from Gases

| Editor: Alexander Stark

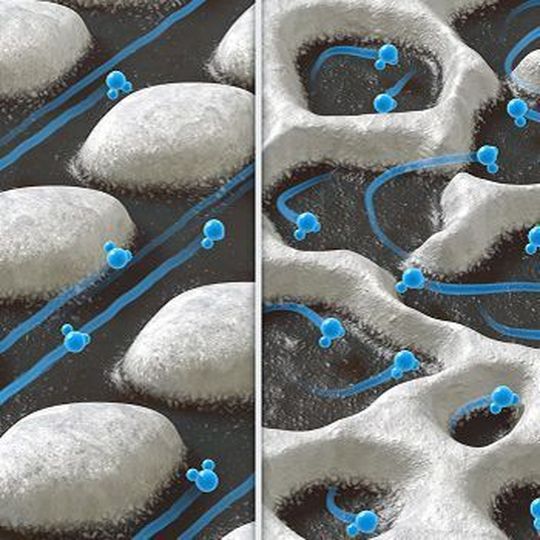

Schematic depictions of membranes with ordered (left) and disordered (right) channel structures.
Gallery: 2 Pictures
Schematic depictions of membranes with ordered (left) and disordered (right) channel structures. (Source: Reproduced with permission from reference 1 © 2018 Xavier Pita)

Removing water vapor from air and other gas mixtures, which is crucial for many industrial processes and air conditioning, could become cheaper and more effective through polymer membrane technology now developed at Kaust.

Thuwal/Saudi Arabia — The researchers found a way to create tiny nanochannels in a membrane structure that they describe as highways for water molecules. The channels attract water and divert it away for extraction, leaving dry gases behind. According to Faheem Akhtar, a Kaust Ph.D. student, the water transport is extremely fast. The membranes are composed of a commercial polymer called Nexar. This is a block copolymer that assembles when short blocks of one repeating molecular unit become sequentially linked with short blocks of another type of unit. The chemical structure of the blocks controls the interaction with water vapor and other gases.

The key innovation, however, was the discovery that the fine structure of bumps and ridges in the membranes can be controlled by varying the conditions in which the polymer self-assembles. Changing the solvents used during the polymer formation generates membranes with a variety of ordered or disordered channels.

Getting the right polymer morphology was very challenging and interesting, said team leader Klaus-Viktor Peinemann. He explains that the polymer contains water-friendly and water-repellent sections. When prepared using appropriate solvents, the water-friendly sections orient themselves like pearls on a string, forming the highways for water transport. It took the scientists a long time to find the right conditions. To succeed, theoretical understanding of the chemical interaction between the chosen solvents and the polymer was combined with a fair bit of trial and error. Through science and perseverance, the researchers eventually identified a procedure to make ordered structures that yield a six-fold increase in water permeability compared to disordered membranes.

Having demonstrated the basic potential of the membrane technology, the team now plan to scale-up the manufacturing process and to test it in realistic industrial applications. The commercial opportunities are considerable. More effective dehumidification methods could drastically reduce the energy consumption of an energy-intensive procedure.

Akhtar and colleagues developed the advance in collaboration with scientists from both Physical Sciences and Engineering and Biological and Environmental Science and Engineering Divisions.

References: 1.Akhtar, F.H., Vovushua, H., Villalobos, L.F., Shevate, R., Kumar, M., Nunes, S.P., Schwingenschlögl, U. & Peinemann, K.V. Highways for water molecules: Interplay between nanostructure and water vapor transport in block copolymer membranes. Journal of Membrane Science 572, 641-649 (2018).
