More Cost Effective Electrolysis Catalysts — Key to More Efficient Production of Green Hydrogen?

Editor: MA Alexander Stark |

A layer as thin as a single atom is enough to double the amount of water split on the surface of an electrode in an electrolysis system — and thus also the volume of hydrogen produced. Researchers from Jülich, Aachen, Stanford, and Berkeley report on this in the latest edition of the journal Nature Materials.

Related Vendor

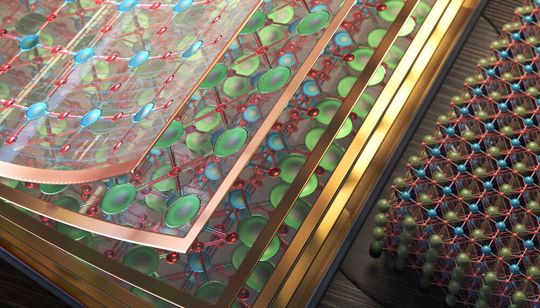

Researchers from Jülich, Aachen, Stanford and Berkeley have studied the layer-by-layer structure of a catalyst material.
Researchers from Jülich, Aachen, Stanford and Berkeley have studied the layer-by-layer structure of a catalyst material.
(Source: CUBE3D Graphic)

Jülich/Germany — Researchers from Jülich, Aachen, Stanford and Berkeley have studied the layer-by-layer structure of a catalyst material and found that an atomically thin surface layer can double the activity for the water splitting reaction. By studying the model material, the international research team has gained a more detailed understanding of how the properties of a catalytically active electrode result from its structure. Funded by a Global Fellowship of the Marie Skłodowska-Curie Actions, research for this was advanced both in Jülich and Aachen and in the USA. Christoph Bäumer, first author of the study that was produced in the process, hopes that this expanded understanding will enable better catalysts to be developed in the future that produce green hydrogen more energy-efficiently and thus more cost-effectively than before.


The colourless hydrogen gas is known as green hydrogen if it is produced in a climate-neutral way, using electricity from renewable sources for the electrolysis of water. Hydrogen is considered an essential component of the energy transition, in part because it can store wind and solar energy in times of an oversupply to be released later. However, electrolytic hydrogen production at the negatively charged electrode (cathode) cannot take place without oxygen generation at the positively charged electrode (anode). Thus, catalysts that favour this kind of oxygen generation make the overall process more energy-efficient. The high energy requirements have been one of the main obstacles for a broad use of hydrogen so far.

Lanthanum nickelate (LaNiO3) that belongs to the perovskite material class is one such catalyst. The crystal structure alternates between layers of nickel oxide and lanthanum oxide. The researchers were able to produced lanthanum nickelate catalysts more precisely and studied them in more detail than other scientists have before. They did so by producing two different types of high-purity LaNiO3 crystals: In one type, the crystals terminate at a surface in which there are only lanthanum and oxygen atoms. Experts refer to this as lanthanum termination. In the other type, nickel and oxygen atoms form the surface (nickel termination).

It turned out that a nickel-terminated anode produces twice as much oxygen in the same time as an equally large lanthanum-terminated electrode. A single layer of nickel and oxygen atoms is responsible for a considerable increase in the catalytic activity of the material. The team of scientists was also able to find a reason for this: During electrolysis, a disordered, catalytically very active layer of nickel dioxide forms on the Ni-terminated crystal, which cannot form with lanthanum termination. Compared to the initial structure, this newly formed nickel dioxide layer has ideal bonding states between nickel ions and oxygen or hydroxide ions, which increases the activity. The results indicate that if particularly active catalysts are to be developed, it is necessary to take termination and the resulting structural changes under operating conditions into account for other materials as well.

In addition, the research results show the levers for determining this termination in perovskite materials: One of them is the temperature at which they are produced. The scientists discovered that in the case of lanthanum nickelate, high temperatures facilitate lanthanum termination. To produce nickel-terminated crystals, the scientists used a method that allows them to selectively apply an atomically thin layer of nickel atoms to the surface of a lanthanum-terminated crystal.

The researchers were only able to understand their findings because, for the first time in electrocatalyst research, they used a method that analyses the composition of the crystal surface by means of standing waves of synchrotron X-ray radiation. These standing waves can be generated by interference of the incident and the outgoing X-rays. A prerequisite for this was the atomically precise production of a LaNiO3 X-ray mirror consisting of 40 alternating layers, underneath the active layer to be investigated. The scientists used the Advanced Light Source in Berkeley (USA) as the X-ray source. The optimized bonding states between nickel ions and oxygen or hydroxide ions in the modified nickel surface were made evident by calculations conducted by scientists at the SLAC National Accelerator Laboratory in Menlo Park, USA.

The project was funded by the DOE Office of Science, and Baeumer was also supported by the European Union’s Horizon 2020 research and innovation program through a Marie Sklodowska-Curie fellowship.

Original publication: 'Tuning electrochemially driven surface transformation in atomically flat LaNiO3 thin films for enhanced water electrolysis'; C. Baeumer, J. Li, Q. Lu, A. Liang, L. Jin, H. Martins, T. Duchoň, M. Glöß, S. M. Gericke, M. A. Wohlgemuth, M. Giesen, E. E. Penn, R. Dittmann, F. Gunkel, R. Waser, M. Bajdich, S. Nemšák, J. T. Mefford, W. C. Chueh; Nature Materials, 11 January 2021, DOI: 10.1038/s41563-020-00877-1
