USA: Neuroscience A New Chip Can Map the Neural Activity in the Brain
Researchers from Harvard University have developed an electronic chip that can perform high-sensitivity intracellular recording from thousands of connected neurons simultaneously. This breakthrough allowed them to map synaptic connectivity at an unprecedented level, identifying hundreds of synaptic connections.
Cambridge/USA — How our brain cells, or neurons, use electrical signals to communicate and coordinate for higher brain function is one of the biggest questions in all of science. For decades, researchers have used electrodes to listen in on and record these signals. The patch clamp electrode, an electrode in a thin glass tube, revolutionized neurobiology in the 1980’s with its ability to penetrate a neuron and to record quiet but telltale synaptic signals from inside the cell. But this tool lacks the ability to record a neuronal network; it can measure only about ten cells in parallel.
A chip developed by Harvard University is to change that drastically: Its ability of intracellular recording could benefit fundamental and applied neurobiology alike, including functional connectome construction and high-throughput electrophysiological screening, said Hongkun Park, Mark Hyman Jr. Professor of Chemistry and Professor of Physics, and co-senior author of the paper. Donhee Ham added that the mapping of the biological synaptic network enabled by this long sought-after parallelization of intracellular recording also could provide a new strategy for machine intelligence to build next-generation artificial neural network and neuromorphic processors. Ham is a Gordon McKay Professor of Applied Physics and Electrical Engineering at the John A. Paulson School of Engineering and Applied Sciences (SEAS), and co-senior author of the paper.

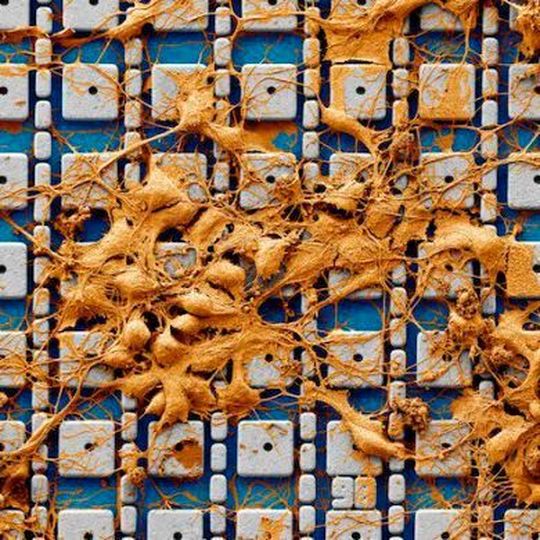

The researchers developed the electronic chip using the same fabrication technology as computer microprocessors. The chip features a dense array of vertically-standing nanometer-scale electrodes on its surface, which are operated by the underlying high-precision integrated circuit. Coated with platinum powder, each nanoelectrode has a rough surface texture, which improves its ability to pass signals.
Neurons are cultured directly on the chip. The integrated circuit sends a current to each coupled neuron through the nanoelectrode to open tiny holes in its membrane, creating an intracellular access. Simultaneously, the same integrated circuit also amplifies the voltage signals from the neuron picked up by the nanoelectrode through the holes. In this way they combined the high sensitivity of intracellular recording and the parallelism of the modern electronic chip. In experiments, the array intracellularly recorded more than 1700 rat neurons. Just 20 minutes of recording gave researchers a never-before-seen look at the neuronal network and allowed them to map more than 300 synaptic connections.
This work was also co-authored by Tianyang Ye, Keith Krenek, Rona S. Gertner, Steven Ban, Youbin Kim, Ling Qin and Wenxuan Wu. The scientists also used this high-throughput, high-precision chip to measure the effects of drugs on synaptic connections across the rat neuronal network, and now they are developing a wafer-scale system for high-throughput drug screening for neurological disorders such as schizophrenia, Parkinson’s disease, autism, Alzheimer’s disease, and addiction.
The research was supported by Samsung Advanced Institute of Technology of Samsung Electronics, the Catalyst Foundation, the US Army Research Office, the National Science Foundation, the National Institutes of Health, and the Gordon and Betty Moore Foundation.
