UK: Materials Sciences Self-Healing Materials for Robotics Made from ‘Jelly’ and Salt
Low-cost jelly-like materials, developed by researchers at the University of Cambridge, can sense strain, temperature and humidity. And unlike earlier self-healing robots, they can also partially repair themselves at room temperature.
Cambridge/UK — Soft sensing technologies could transform robotics, tactile interfaces and wearable devices, among other applications. However, most soft sensing technologies aren’t durable and consume high amounts of energy. Researchers at the University of Cambridge, UK, have now developed self-healing, biodegradable, 3D-printed materials that could be used in the development of realistic artificial hands and other soft robotics applications.
“Incorporating soft sensors into robotics allows us to get a lot more information from them, like how strain on our muscles allows our brains to get information about the state of our bodies,” said David Hardman from Cambridge’s Department of Engineering, the paper’s first author.
As part of the EU-funded Shero project, Hardman and his colleagues have been working to develop soft sensing, self-healing materials for robotic hands and arms. These materials can detect when they are damaged, take the necessary steps to temporarily heal themselves and then resume work — all without the need for human interaction.
“We’ve been working with self-healing materials for several years, but now we’re looking into faster and cheaper ways to make self-healing robots,” said co-author Dr Thomas George-Thuruthel, also from the Department of Engineering.
Earlier versions of the self-healing robots needed to be heated in order to heal, but the Cambridge researchers are now developing materials that can heal at room temperature, which would make them more useful for real-world applications.
“We started with a stretchy, gelatine-based material which is cheap, biodegradable and biocompatible and carried out different tests on how to incorporate sensors into the material by adding in lots of conductive components,” said Hardman.
We could make a whole robot out of gelatine and print the sensors wherever we need them.
The researchers found that printing sensors containing sodium chloride — salt — instead of carbon ink resulted in a material with the properties they were looking for. Since salt is soluble in the water-filled hydrogel, it provides a uniform channel for ionic conduction — the movement of ions.
When measuring the electrical resistance of the printed materials, the researchers found that changes in strain resulted in a highly linear response, which they could use to calculate the deformations of the material. Adding salt also enabled sensing of stretches of more than three times the sensor’s original length, so that the material can be incorporated into flexible and stretchable robotic devices.

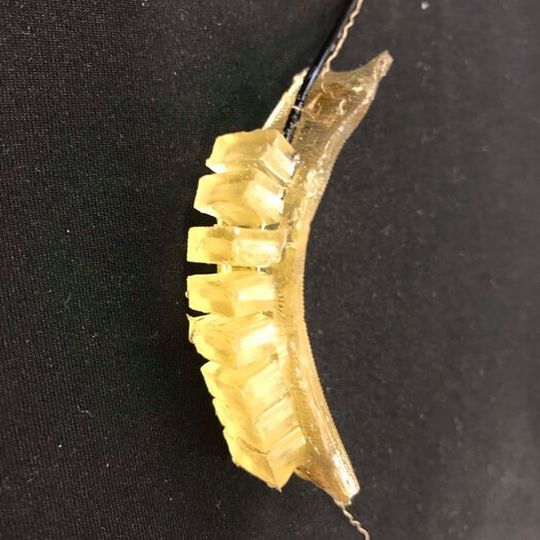

The self-healing materials are cheap and easy to make, either by 3D printing or casting. They are preferable to many existing alternatives since they show long-term strength and stability without drying out, and they are made entirely from widely available, food-safe, materials.
“It’s a really good sensor considering how cheap and easy it is to make,” said George-Thuruthel. “We could make a whole robot out of gelatine and print the sensors wherever we need them.”
The self-healing hydrogels bond well with a range of different materials, meaning they can easily be incorporated with other types of robotics. For example, much of the research in the Bio-Inspired Robotics Laboratory, where the researchers are based, is focused on the development of artificial hands. Although this material is a proof-of-concept, if developed further, it could be incorporated into artificial skins and custom-made wearable and biodegradable sensors.
References: Self-healing ionic gelatin/glycerol hydrogels for strain sensing applications; NPG Asia Materials; DOI:10.1038/s41427-022-00357-9
