Bioelectronic Interfaces Breakthrough Hydrogel Brings Tissue-Like Flexibility to Bioelectronics

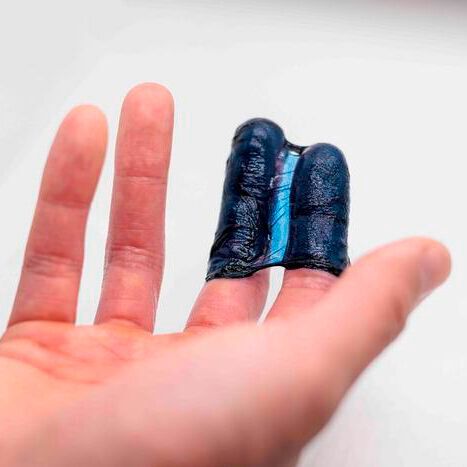

Researchers in the lab of U-Chicago Pritzker School of Molecular Engineering Asst. Prof. Sihong Wang have developed a hydrogel that retains the semiconductive ability needed to transmit information between living tissue and machine, which can be used both in implantable medical devices and non-surgical applications.

The ideal material for interfacing electronics with living tissue is soft, stretchable, and just as water-loving as the tissue itself — in short, a hydrogel. Semiconductors, the key materials for bioelectronics such as pacemakers, biosensors, and drug delivery devices, on the other hand, are rigid, brittle, and water-hating, impossible to dissolve in the way hydrogels have traditionally been built.

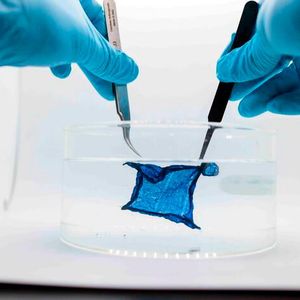

A paper published in Science from the U-Chicago Pritzker School of Molecular Engineering (PME) has solved this challenge that has long stymied researchers, reimagining the process of creating hydrogels to build a powerful semiconductor in hydrogel form. Led by Asst. Prof. Sihong Wang’s research group, the result is a bluish gel that flutters like a sea jelly in water but retains the immense semiconductive ability needed to transmit information between living tissue and machine.

Gallery

The material demonstrated tissue-level moduli as soft as 81 kPa, stretchability of 150 % strain, and charge-carrier mobility up to 1.4 cm² V-1 s-1. This means their material — both semiconductor and hydrogel at the same time—ticks all the boxes for an ideal bioelectronic interface.

“When making implantable bioelectronic devices, one challenge you must address is to make a device with tissue-like mechanical properties,” said Yahao Dai, the first author of the new paper. “That way, when it gets directly interfaced with the tissue, they can deform together and also form a very intimate bio-interface.”

Although the paper mainly focused on the challenges facing implanted medical devices such as biochemical sensors and pacemakers, Dai said the material also has many potential non-surgical applications, like better readings off the skin or improved care for wounds.

“It has very soft mechanical properties and a large degree of hydration similar to living tissue,” said U-Chicago PME Asst. Prof. Sihong Wang. “Hydrogel is also very porous, so it allows the efficient diffusion transport of different kinds of nutrition and chemicals. All these traits combine to make hydrogel probably the most useful material for tissue engineering and drug delivery.”

Physical “Memory”

Hydrogels Can Play Pong and Even Improve Performance Over Time

'Let’s Change our Perspective’

The typical way of making a hydrogel is to take a material, dissolve it in water, and add the gelation chemicals to puff the new liquid into a gel form. Some materials simply dissolve in water, others require researchers to tinker and chemically modify the process, but the core mechanism is the same: No water, no hydrogel.

Semiconductors, however, don’t normally dissolve in water. Rather than find new, time-consuming means of trying to force the process, the U-Chicago PME team re-examined the question.

“We started to think, ‘Okay, let's change our perspective,’ and we came up with a solvent exchange process,” Dai said. Instead of dissolving the semiconductors in water, they dissolved them in an organic solvent that is miscible with water. They then prepared a gel from the dissolved semiconductors and hydrogel precursors. Their gel initially was an organogel, not a hydrogel. “To eventually turn it into a hydrogel, we then immersed the whole material system into the water to let the organic solvent dissolve out and let the water come in,” Dai said.

An important benefit of such a solvent-exchange-based method is its broad applicability to different types of polymer semiconductors with different functions.

‘One Plus One is Greater than Two’

The hydrogel semiconductor, which the team has patented and is commercializing through U-Chicago’s Polsky Center for Entrepreneurship and Innovation, is not merging a semiconductor with a hydrogel. It’s one material that is both semiconductor and hydrogel at the same time.

“It’s just one piece that has both semiconducting properties and hydrogel design, meaning that this whole piece is just like any other hydrogel,” Wang said.

Unlike any other hydrogel, however, the new material actually improved biological functions in two areas, creating better results than either hydrogel or semiconductor could accomplish on their own.

First, having a very soft material bond directly with tissue reduces the immune responses and inflammation typically triggered when a medical device is implanted.

Second, because hydrogels are so porous, the new material enables elevated biosensing response and stronger photo-modulation effects. With biomolecules being able to diffuse into the film to have volumetric interactions, the interaction sites for biomarkers-under-detection are significantly increased, which gives rise to higher sensitivity. Besides sensing, the responses to light for therapeutic functions at tissue surfaces also get increased from the more efficient transport of redox-active species. This benefits functions such as light-operated pacemakers or wound dressing that can be more efficiently heated with a flick of light to help speed healing.

“It’s a ‘one plus one is greater than two’ kind of combination,” Wang joked.

Original Article: “Soft hydrogel semiconductors with augmented biointeractive functions,” Dai et al., Science, October 24, 2024. DOI: 10.1126/science.adp9314
